Outlier Detection

Overview

The outlier_detection module provides an end-to-end pipeline for image-based anomaly detection. Currently, pyBIA includes only the Isolation Forest (iForest) model, an unsupervised machine learning technique that trains only on a single class. While traditional anomaly detection trains on the inliers (i.e., the normal instances), training on the outlier class can also yield robust performance.

In this example, we will train an iForest classifier to detect satellitle streaks in wide-field surveys, despite not seeing such instances during training. The model will be trained with unaffected images only (the inliers), and performance will be assesed according to how well the model works at flagging images with satellite streaks as outliers while maintaining high inlier detection rates. This example will demonstrate the utility of pyBIA’s anomaly detection framework and the robustness of the built-in feature sets.

Feature Engineering

The current implementation supports five different feature sets… (‘hog’,’lbp’,’fft’,’wavelet’,’stats’)

Key Parameters

The Classifier class manages the training of the model. Below are the primary arguments used to configure its behavior…

Example

This example will utilize broadband imaging in the COSMOS field, provided by the Hyper Suprime-Cam Subaru Strategic Program (HSC-SSP). A satellite trail effecting the image data of 75 sources has been identified in the Deep/Ultra-Deep layer, as shown in the image below:

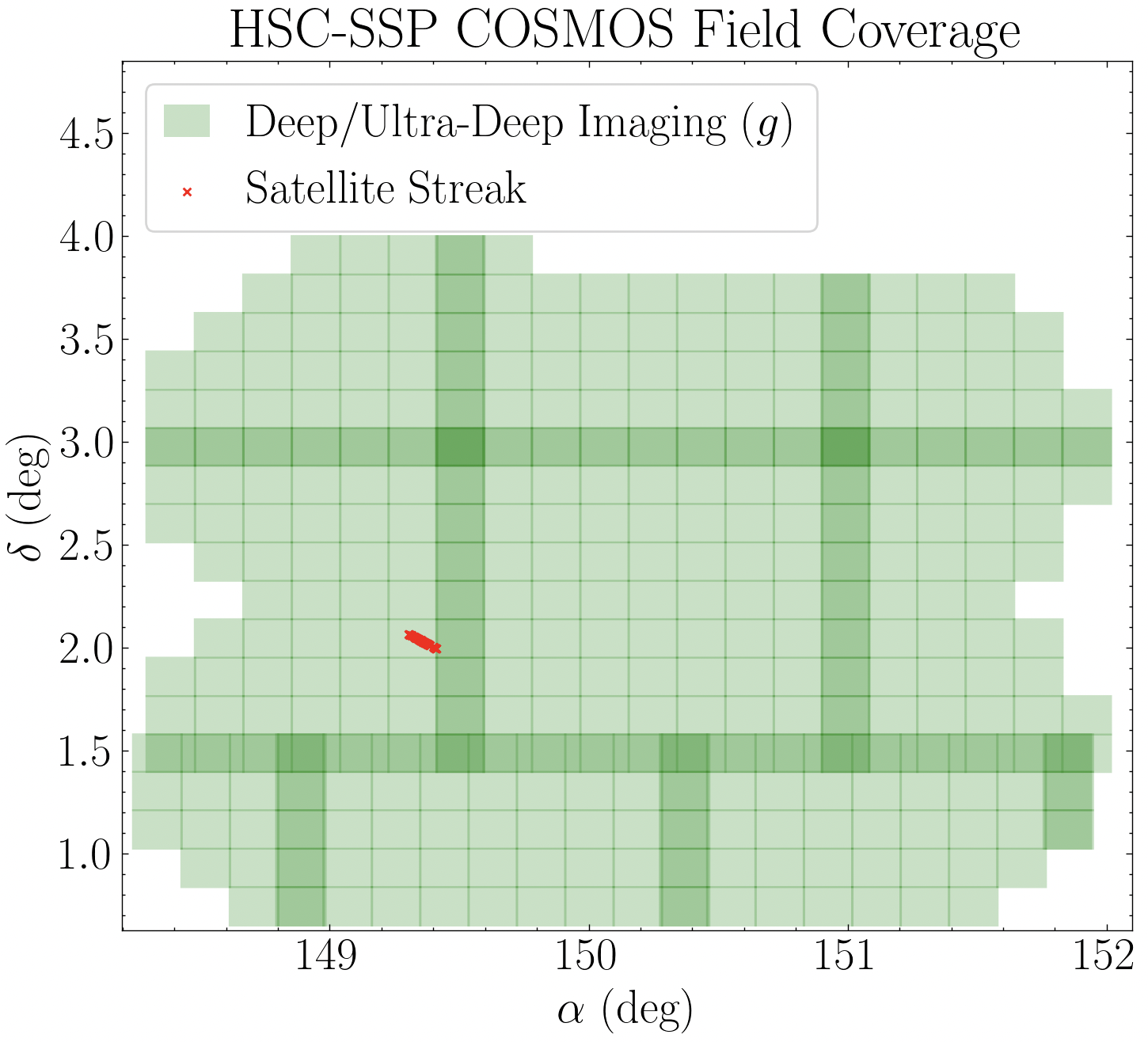

HSC-SSP Imaging Data — HSC-SSP Deep/Ultra-Deep broadband imaging of the COSMOS field in the g-band. The checker overlay indicates patches composing the individual tracts. The sources affected by satellite trails in one of the tracts are shown as red markers.

The g-band imaging of these 75 anomalies, as well as their corresponding coordinates (RA & Dec in decimal degrees), is available for download here:

The inlier sample used to train the classifier is composed of 300 randomly selected sources that are unaffected by such satellite streaks, and can be downloaded here:

inliers

We can visualize these outliers/inliers using the plot_images_grid_2x2 function provided in the Catalog module.

import numpy as np
from pyBIA import catalog

# First plot the outliers
outliers = np.load('satellite_streaks.npy')

pix_conversion = 5.8 # Survey pixel-per-arcsecond (for setting the axes)

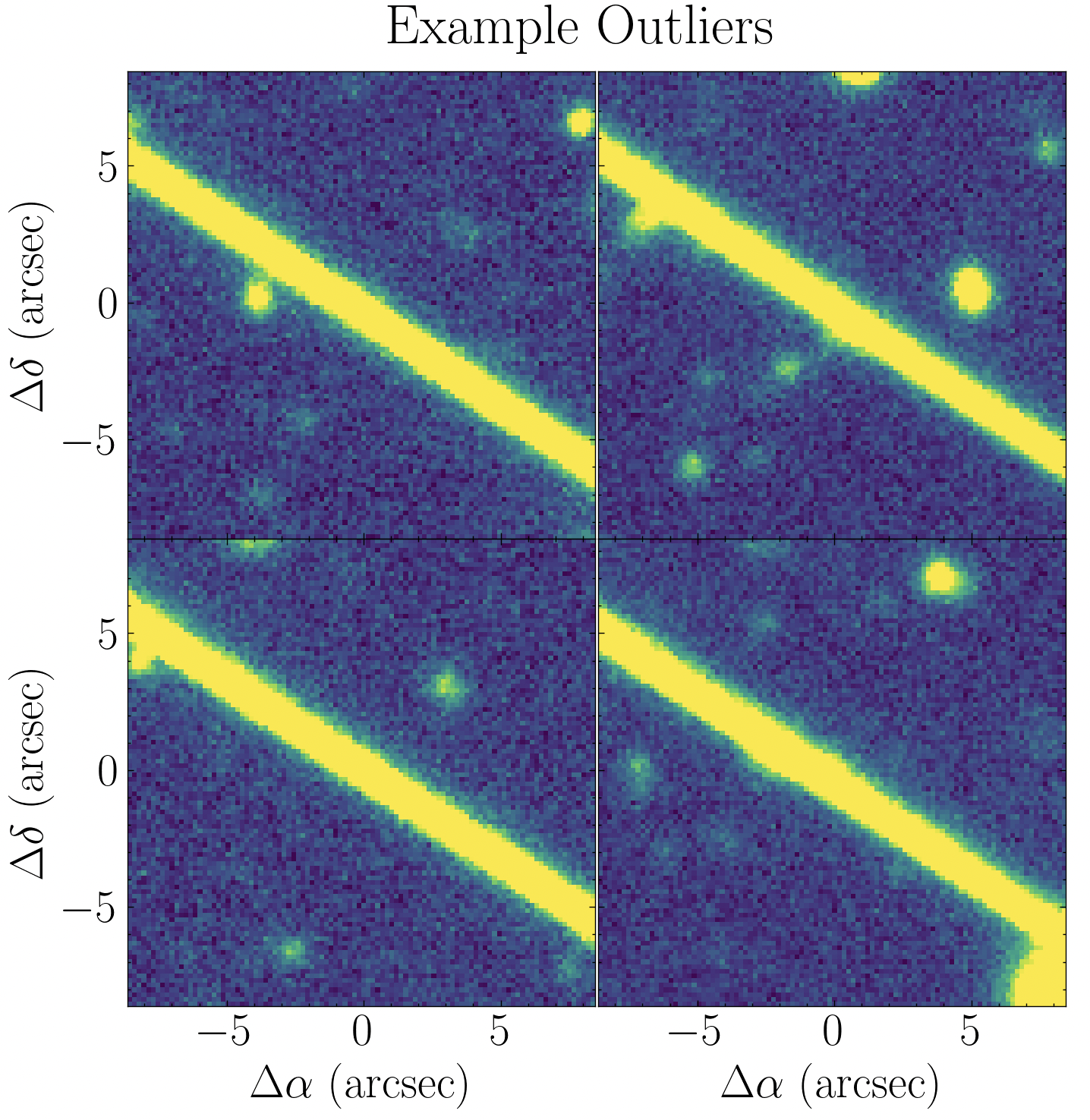

suptitle = r'Example Outliers'
savefig = False # If False the image will be displayed

# Plot the first four images
catalog.plot_images_grid_2x2(
   outliers[0],
   outliers[1],
   outliers[2],
   outliers[3],
   pix_conversion=pix_conversion,
   suptitle=suptitle,
   savefig=savefig
   )

# Next plot the inliers
inliers = np.load('inliers.npy')

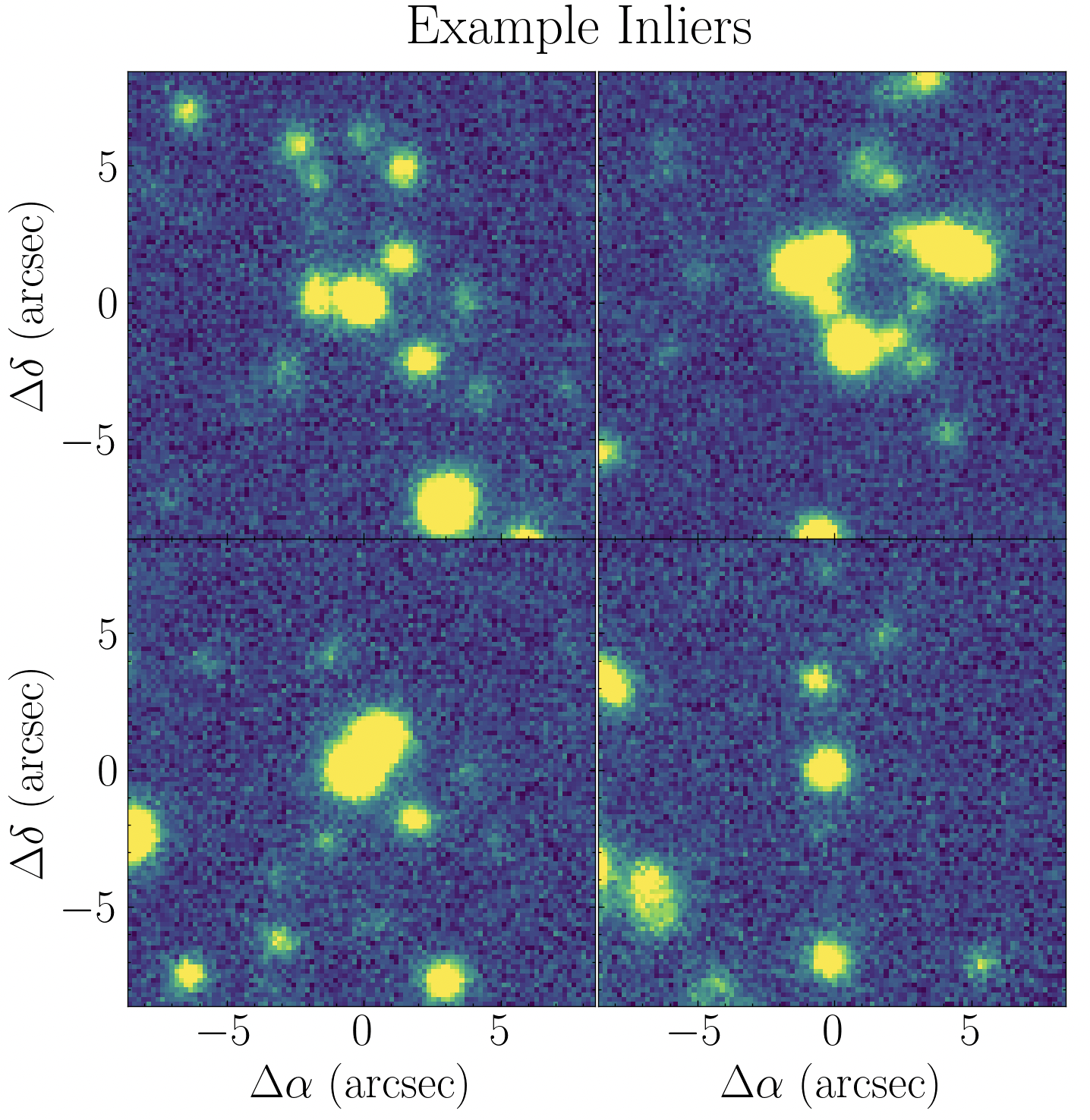

suptitle = r'Example Inliers'

# Plot the first four images
catalog.plot_images_grid_2x2(
   inliers[0],
   inliers[1],
   inliers[2],
   inliers[3],
   pix_conversion=pix_conversion,
   suptitle=suptitle,
   savefig=savefig
   )

To detect these anomalies caused by satellite trails, we train a single-band Isolation Forest (iForest) model on the inlier class.

import numpy as np
from pyBIA import outlier_detection

feat_set = 'hog' # Will train on HOG features (Histogram of Oriented Gradients)

normalize = True # Will min-max normalize the image data
min_pixel = -1 # Minimum pixel value for normalization
max_pixel = 1 # Maximum pixel value for normalization
img_num_channels = 1 # Number of bands in the image array(s)
clf = 'iforest' # Model to train
impute = True # Whether to fit an imputer in case there are NaN pixels
imp_method = 'median' # The imputation method to employ
SEED_NO = 1909 # RNG for model determinism

# Load the inlier class
inliers = np.load('inliers.npy')

# Reserve the first 100 for testing
inliers_test = inliers[:100]

# Train with the other 200
inliers_train = inliers[100:]

# The input images must be 4-dimensional -- (No. Instances, Height, Width, No. Bands)
# Adding fourth dimension (number of bands)
inliers_test = np.expand_dims(inliers_test, axis=-1)
inliers_train = np.expand_dims(inliers_train, axis=-1)

# Instantiate the classifier
model = outlier_detection.Classifier(
   data=inliers_train,
   normalize=normalize,
   min_pixel=min_pixel,
   max_pixel=max_pixel,
   img_num_channels=img_num_channels,
   feat_set=feat_set,
   clf=clf,
   impute=impute,
   imp_method=imp_method,
   SEED_NO=SEED_NO
)
# Train the model
model.create()

Once the model is created, it can be saved using the save class method (and can be loaded later using the load method). This will save the trained model, the imputer (if fitted), and all other corresponding class attributes including the feature set and normalization parameters that were set, which are automatically applied to preprocess data during inference.

We can now proceed with model validation. We will assess performance according to how many of the 75 outliers were correctly flagged as anomalies, and how many of the inliers in the hold-out test set were classified correctly. Predictions are made using the predict class method, which will automatically normalized and impute the input data according to the Classifier configuration.

# Predict the inlier test set
inlier_predictions = model.predict(inliers_test)

# Load the outliers
outliers = np.load('satellite_streaks.npy')

# Need to add fourth dimension as before
outliers = np.expand_dims(outliers, axis=-1)

# Predict the outliers
outlier_predictions = model.predict(outliers)

The predict method returns the following three values, in order: the predicted class (1 for inlier, -1 for outliers), the corresponding decision function score (< 0 for outliers), and the raw anomaly scores (< -0.5 for outliers).

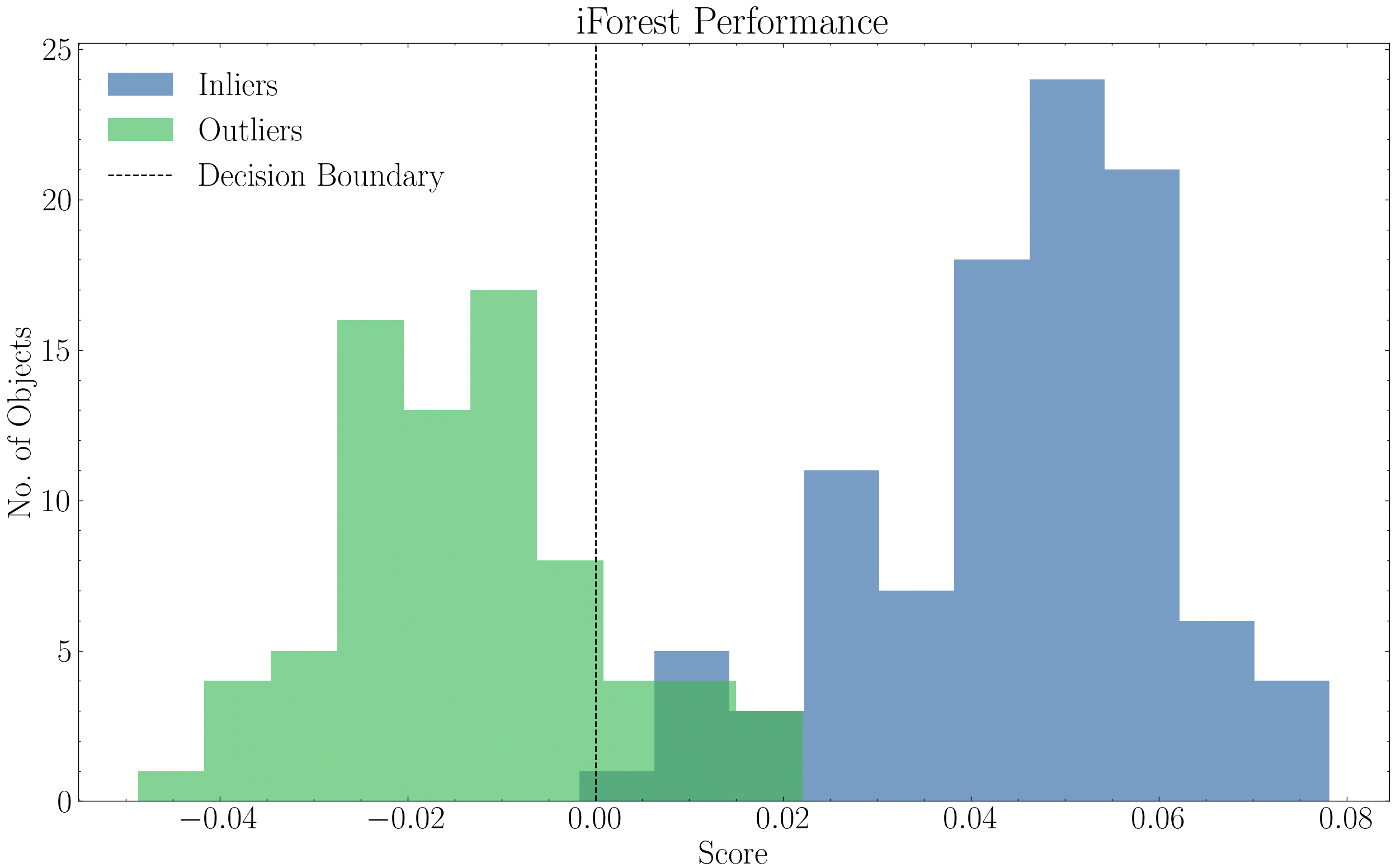

In this example we observe a 99% inlier retention rate, with 85% of the images containing satellite streaks correctly identified as outliers. The decision function score distributions for both classes are shown below.

import pylab as plt

plt.hist(inlier_predictions[:,1], alpha=0.6, label='Inliers')
plt.hist(outlier_predictions[:,1], alpha=0.6, label='Outliers')
plt.axvline(x = 0., linestyle='--', color='k', label='Decision Boundary')
plt.xlabel('Score'); plt.ylabel('No. of Objects')
plt.title('iForest Performance')
plt.legend()
plt.show()
